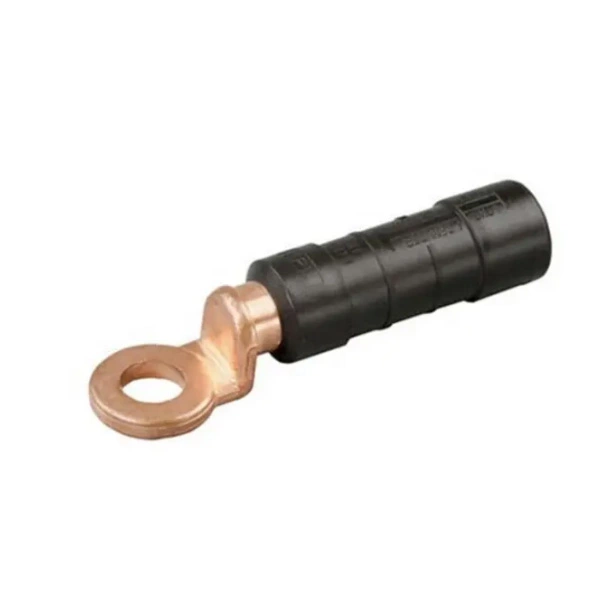

Pre-Insulated Terminal Crimping Ring Bimetal Cable Lugs

Product Description

An aluminium (phase) or aluminium alloy (neutral) sleeve with a stop in the middle.
A black thermoplastic sealed with a flexible elastomer ring.
A neutral contact grease in the tube which improve the contact area and protect the aluminium against oxydation.
The crimping is realized on the plastic part according to the marks on the body of the sleeve.

Product Feature

Pre-Insulated Terminal Crimping Ring Bimetal Cable Lugs

Material: E-Cu; AI-99.6%

Product property: CPT AU is designed to connect the insulated cable (include ABC cable). It is in accordance with NFC33-02 1.

The waterproof cap can prevent the water into the barrel. It is colored differently to distinguish the cable sizes.

Marked with type, cable size, die size, inner cable length and number of crimping.

Products Parameter (Specification)

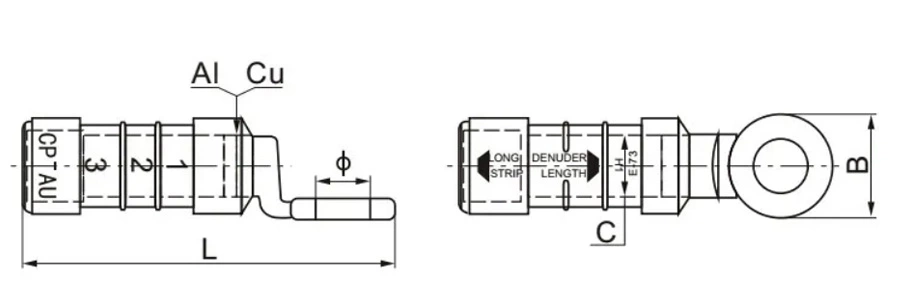

ModleDimensions(mm)Length(mm)
CBΦL
CPTAU 16-10162010.573
CPTAU 25-1220241398.5
CPTAU 35-1220241398.5
CPTAU 50-1220241398.5
CPTAU 54.6-1220241398.5
CPTAU 70-1220241398.5
CPTAU 95-1220241398.5
CPTAU 120-12233013125
CPTAU 150-12233013125
CPTAU 180-12323513145
CPTAU 240-12323513145

Product Details
