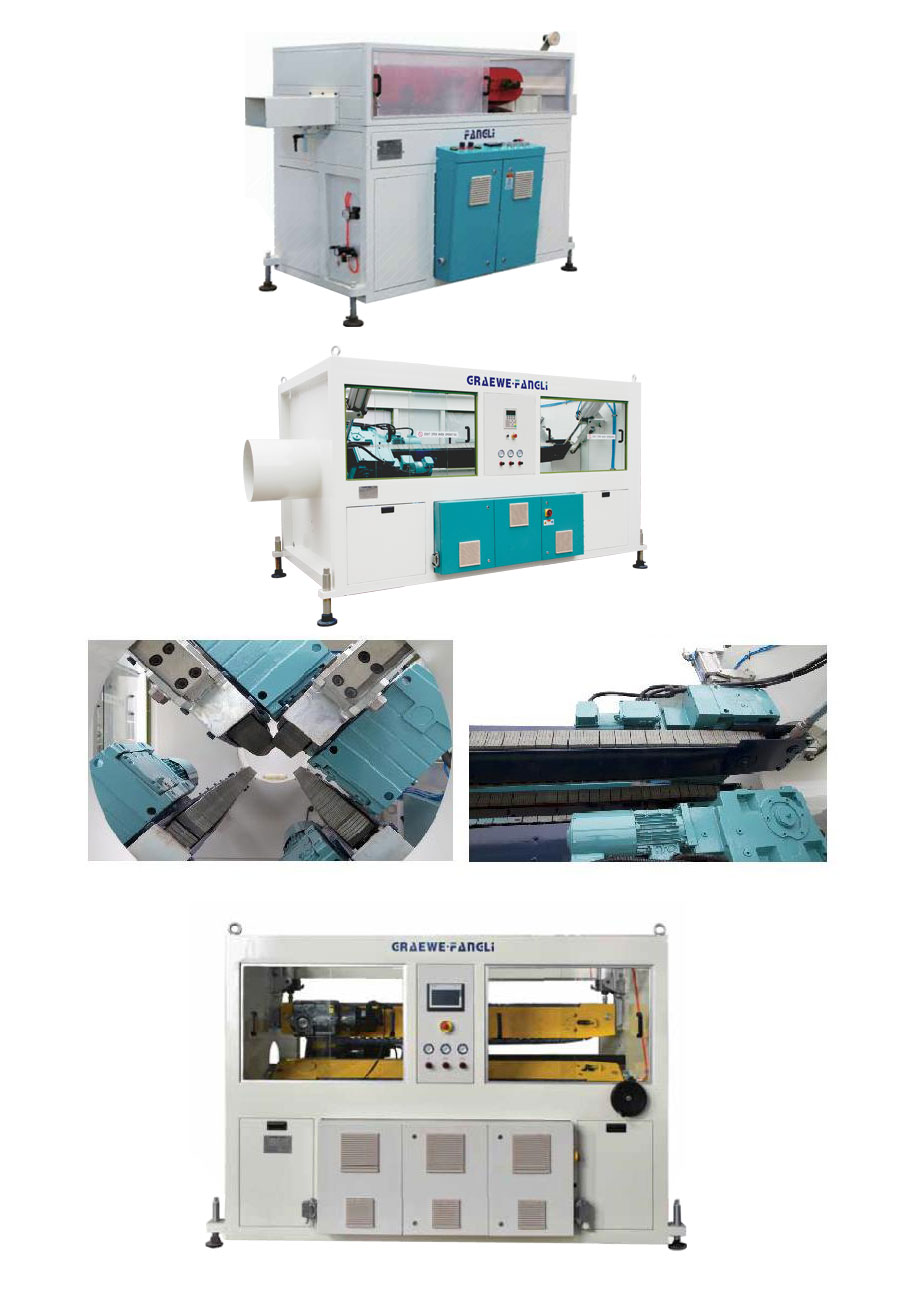

U (North American high-end) series pipe haul-off machine
- Adopt GRAEWE FANGLI brand North American high-end configuration;
- Schneider servo motor is used to drive independently;
- Configured with text display;
- The multi crawler adopts group traction mode to increase the applicable range of pipes;
- Japanese brand rotary encoder length measuring device;
- The rubber block can be removed separately.
- Conform to UL standard design.
- Developed and manufactured according to North American standard.

2. Haul-off Equipement Product Parameter (Specification)

U (North American high-end) series pipe haul-off machine

ModelTraction pipe range( mm )Type of traction beltNumber of traction beltsTraction speed( m/min )Center height( mm )Dimension( mm )
PDQY32U/2Ф12～Ф32Belt22.0～4010002080×1000×1750
PDQY63U/2Ф16～Ф63Belt21.5～3010002400×1100×1750
GFQY160U/3Ф20～Ф160Caterpillar31.0～2010002680×1360×1900
GFQY250U/4Ф50～Ф250Caterpillar40.5～1010002680×1540×1900
GFQY315U/4Ф75～Ф315Caterpillar40.2～6.010002680×1540×1900
GFQY450U/4Ф90～Ф450Caterpillar40.2～5.011004400×2100×2100
GFQY450U/6Ф90～Ф450Caterpillar60.2～5.011004400×2100×2100
GFQY630U/6Ф160～Ф630Caterpillar60.1～3.011004500×2300×2300
GFQY800U/8Ф315～Ф800Caterpillar80.05～1.512004600×2740×2570
GFQY1000U/8Ф400～Ф1000Caterpillar80.03～1.014005920×3300×3000
GFQY1200U/8Ф500～Ф1200Caterpillar80.03～0.616006000×3660×3200
GFQY1600U/10Ф710～Ф1600Caterpillar100.02～0.518006100×4000×3800

Parameters are subject to change without prior notice
